Modular Snap‑Fit Multiwall Polycarbonate Panels

Durable and energy-efficient polycarbonate panel system with snap-fit installation, ideal for roofing, skylights, facades, and interior partitions in commercial and industrial projects.

Seamless Installation and High Performance for Roofing and Glazing

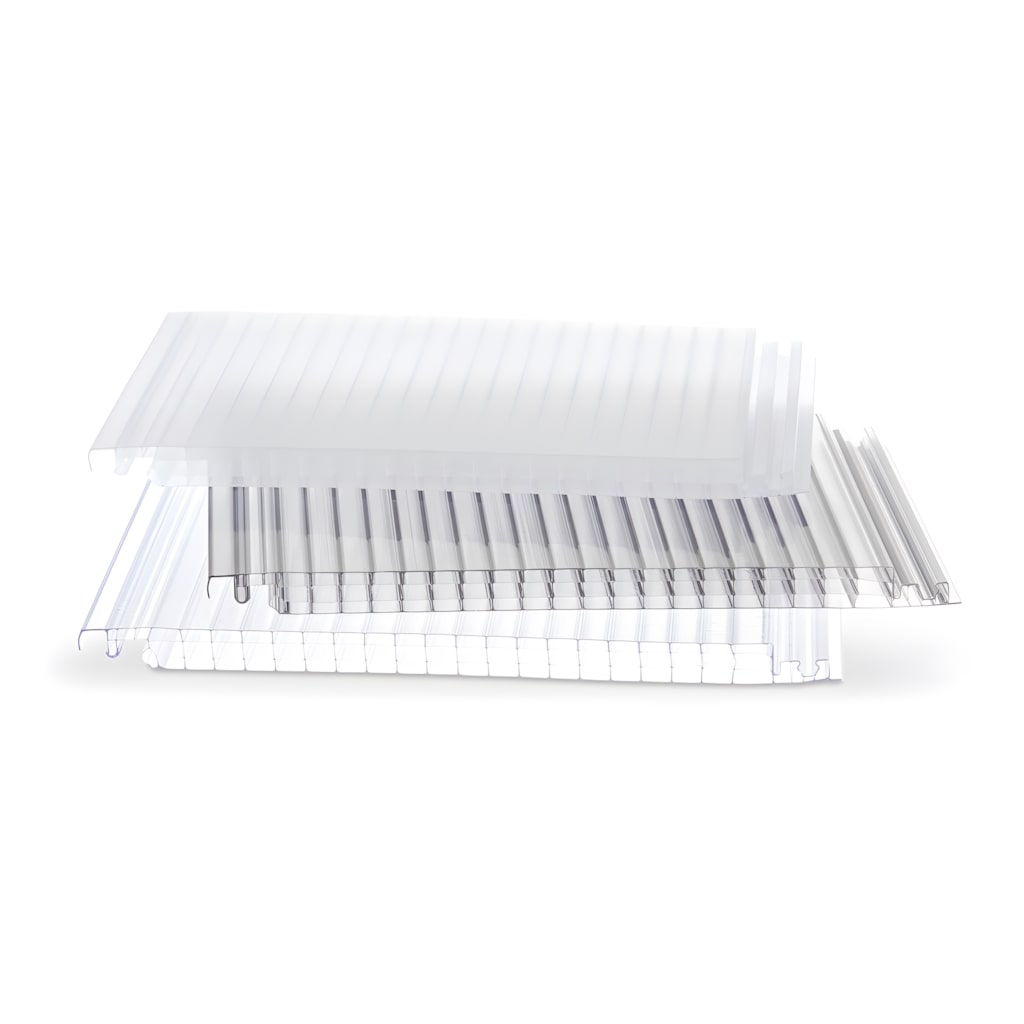

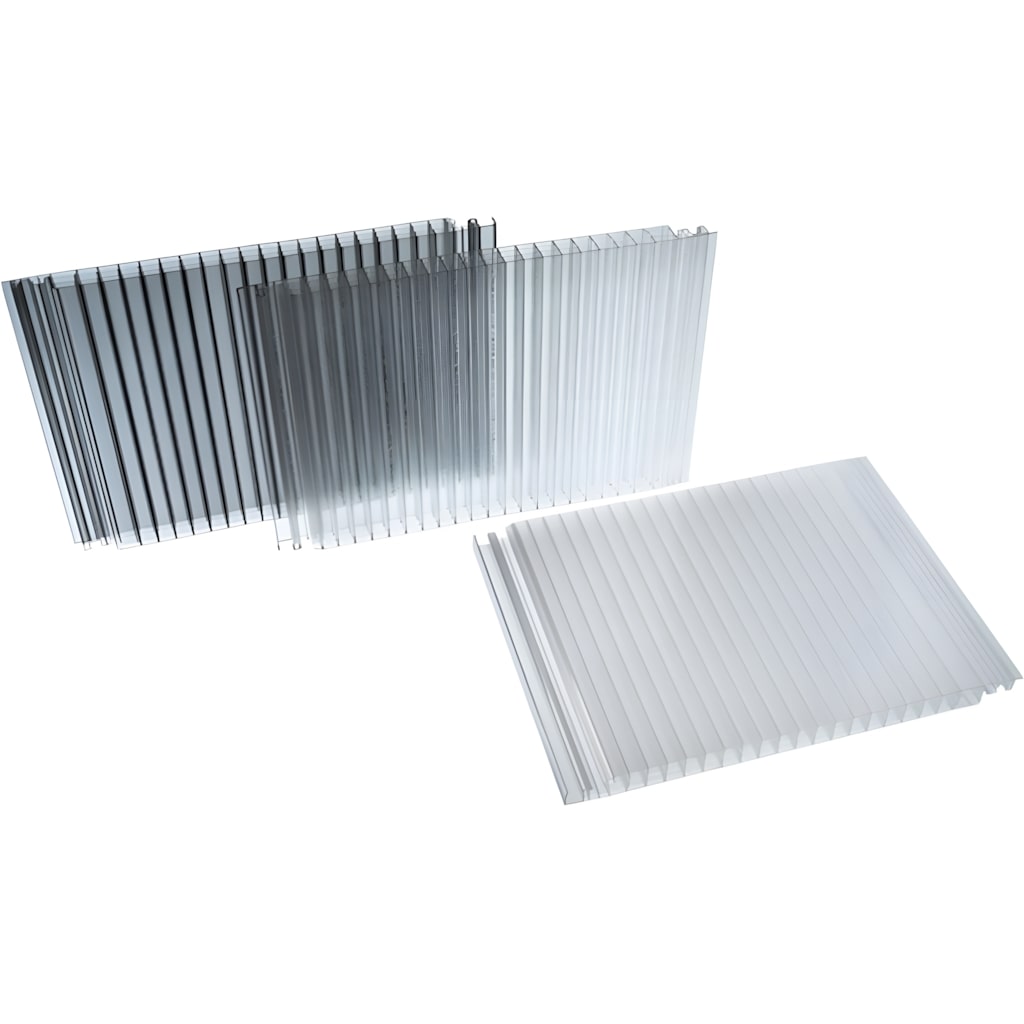

Modular snap‑fit multiwall polycarbonate panels are a versatile building solution designed for fast, clean, and gasket-free assembly. These 16 mm thick panels feature a 4-wall internal structure that delivers excellent thermal insulation and strength, making them ideal for both horizontal and vertical installations. Each panel is 250 mm wide and connects seamlessly through a snap-fit mechanism, eliminating the need for visible fixings and creating a continuous surface with high aesthetic value.

The panels are UV-protected on both sides and are engineered to withstand long-term exposure to sunlight, weather, and temperature fluctuations. Their co-extruded design reduces yellowing and maintains high light transmission. The system includes end caps and anti-dust tape for a fully sealed solution.

Whether used in industrial structures or architectural facades, this panel system provides durability, energy efficiency, and a clean, modern appearance.

Key Features

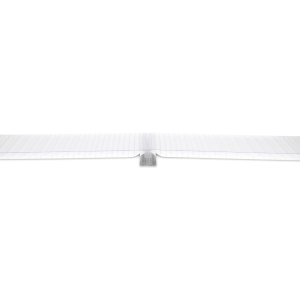

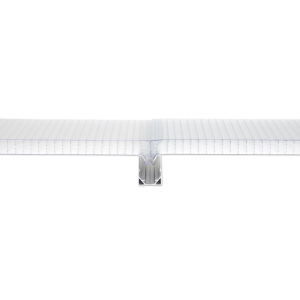

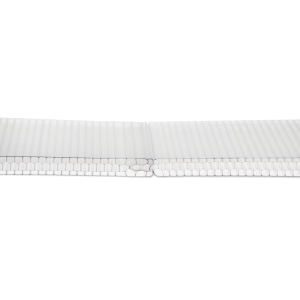

• Snap-fit interlocking system – No gaskets or sealants required

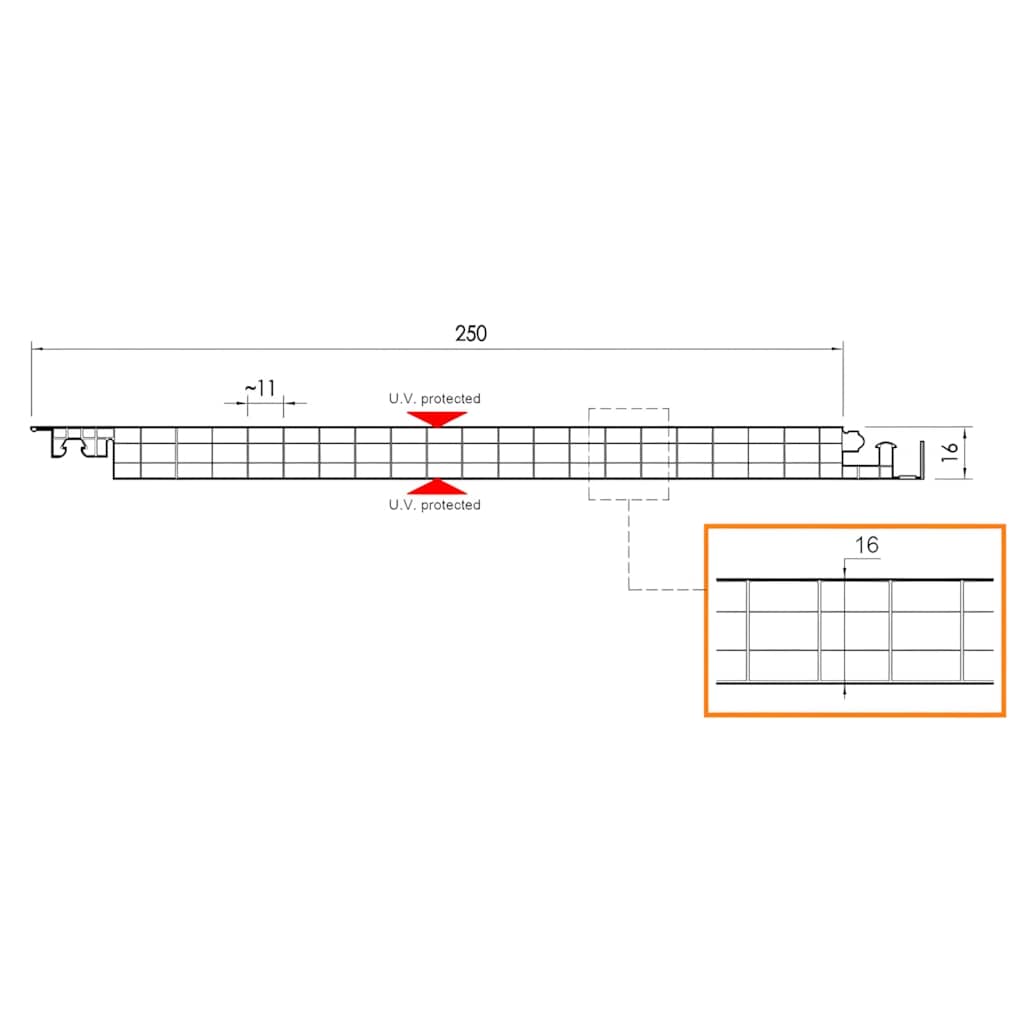

• 4-wall structure (16 mm) – Delivers high thermal insulation (U ≈ 2.10 W/m²K)
• UV protection on both sides – Long-lasting clarity and weather resistance
• 250 mm panel width – Compact and modular for easier transport and installation
• Concealed fixings – Clean finish for modern architectural applications
• Compatible with wood and steel substructures – Suitable for multiple construction types
• Lightweight and impact-resistant – Easy to handle, yet strong and durable

Ideal Applications

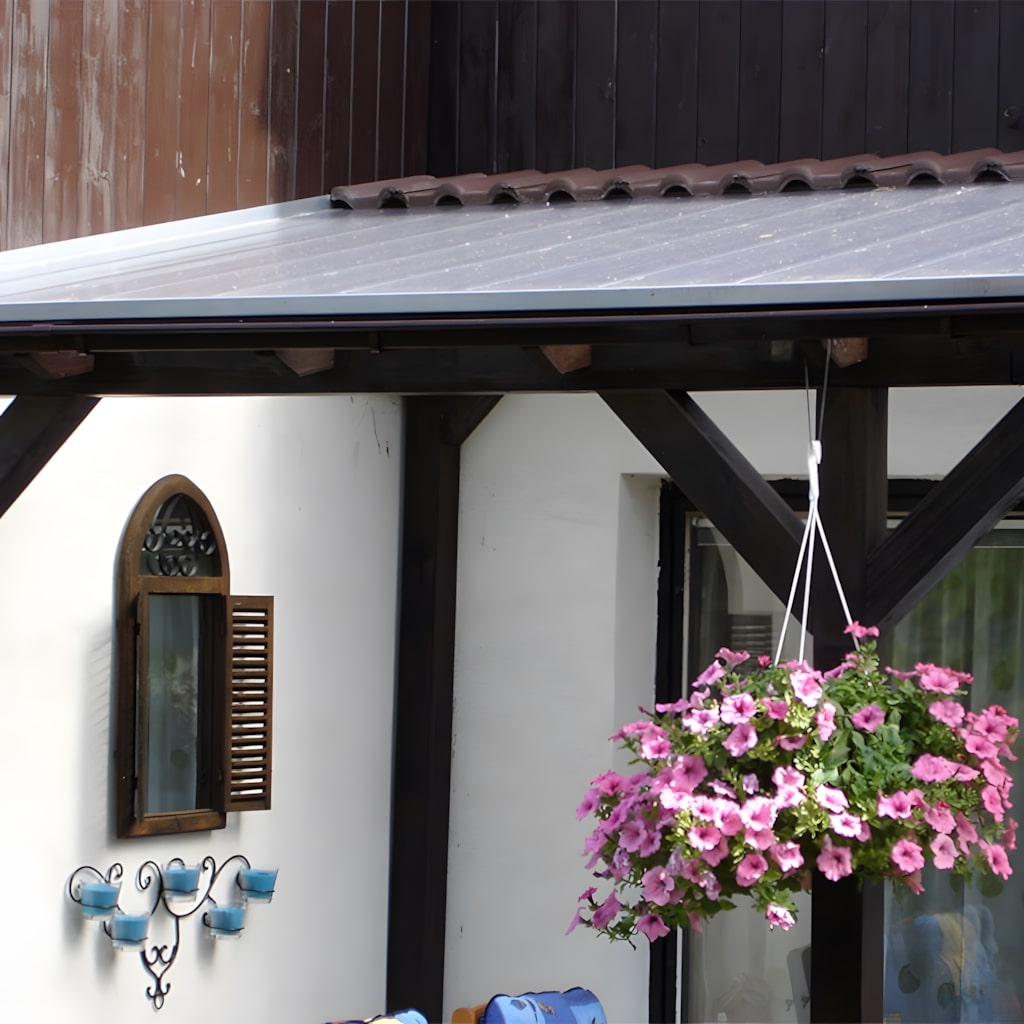

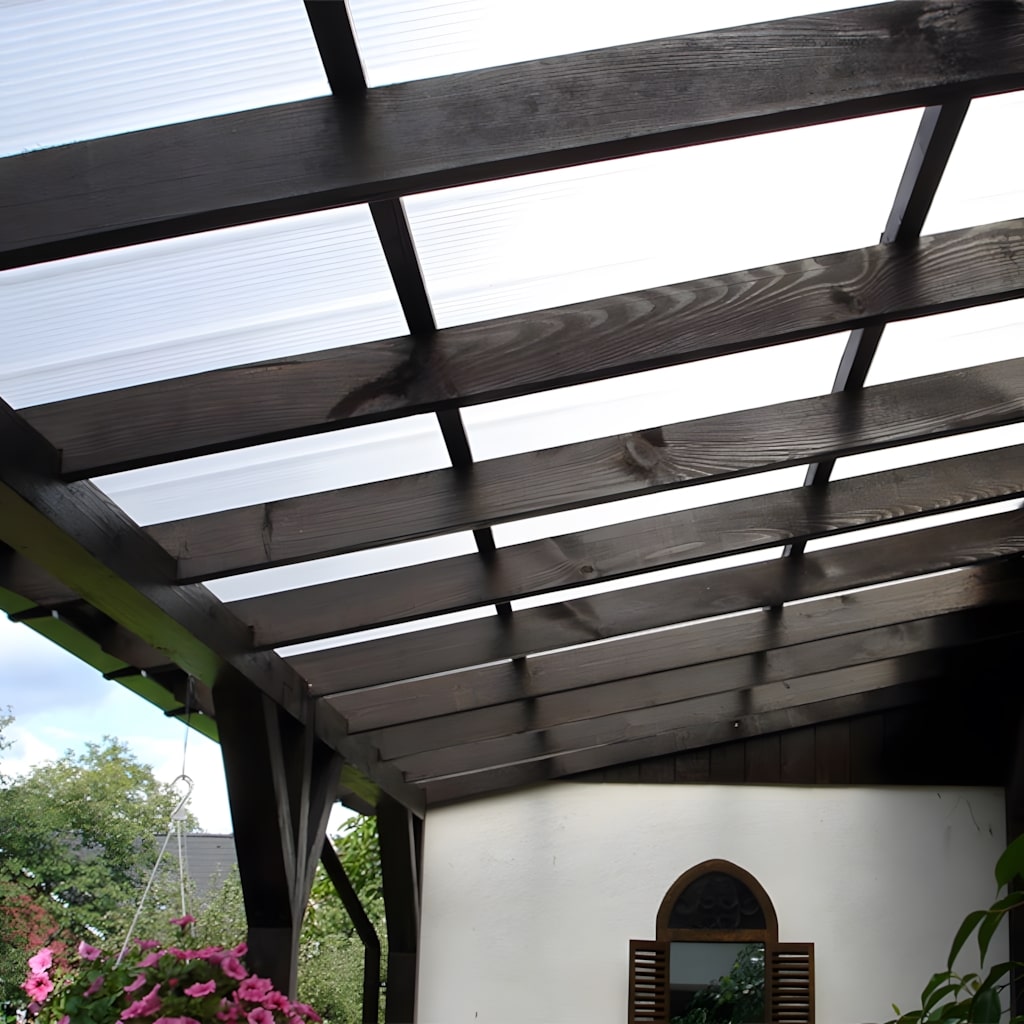

• Pergolas, verandas, and patio covers
• Skylights and translucent roofing
• Industrial and commercial roofing systems
• Vertical facades and curtain walls
• Interior partitions and light diffusing panels
• DIY and prefabricated modular structures

Technical Documentation

Download the full technical specifications for modular snap‑fit multiwall polycarbonate panels:

📄 Download Technical Data Sheet (PDF)
Includes product dimensions, structure details, fire rating, UV protection, and more.
