Self‑Supporting Modular Multiwall Polycarbonate System

Advanced multiwall polycarbonate system for vertical and roofing applications. Features a snap-fit, self-supporting design with high thermal insulation.

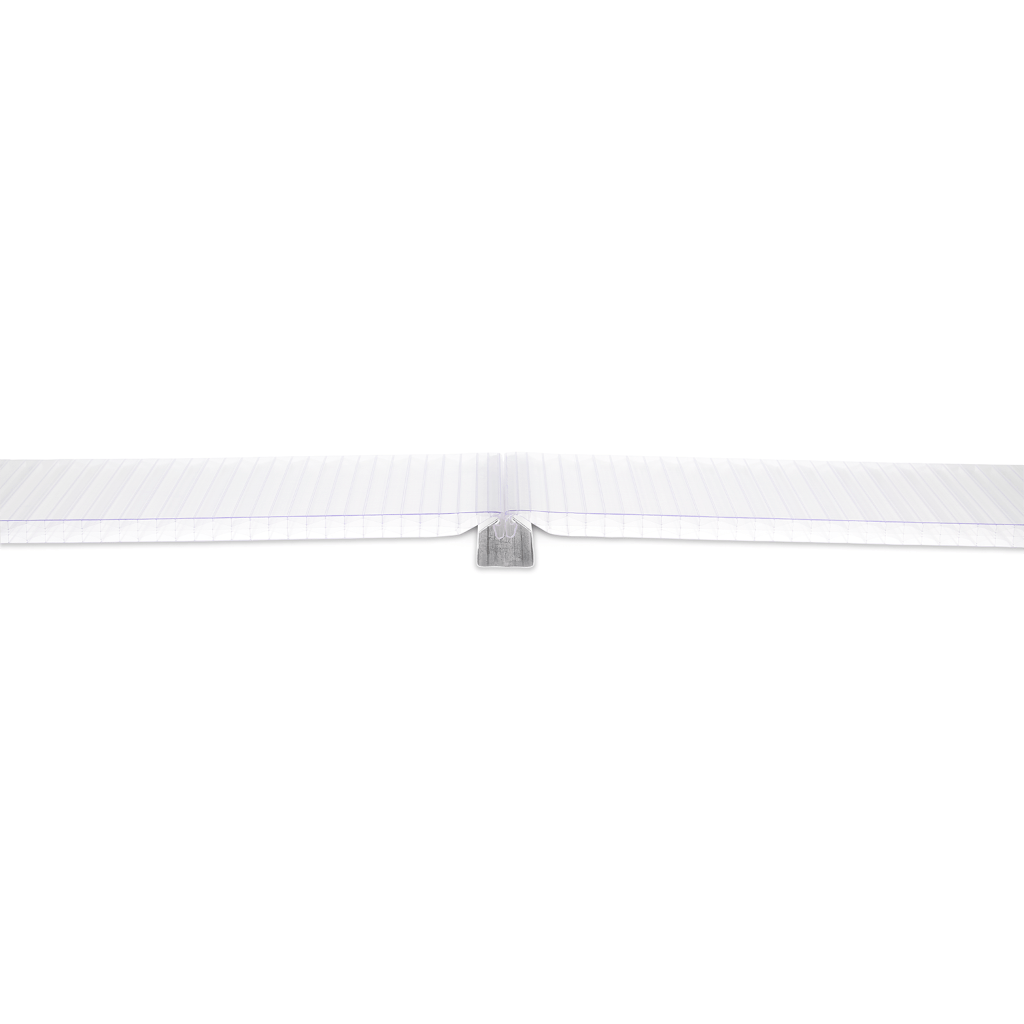

Two connected polycarbonate sheets

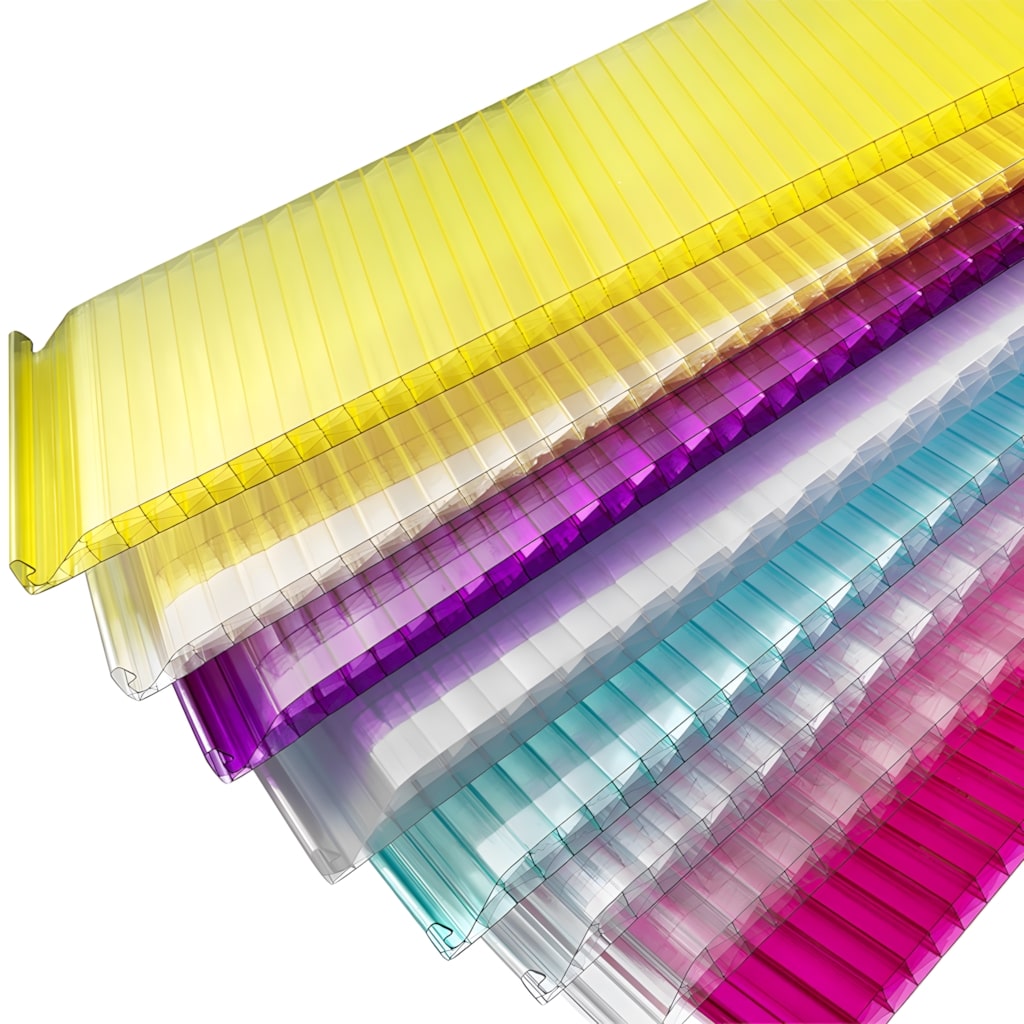

Multicolour channel polycarbonate sheets
Roof with self supporting multiwall polycarbonate system

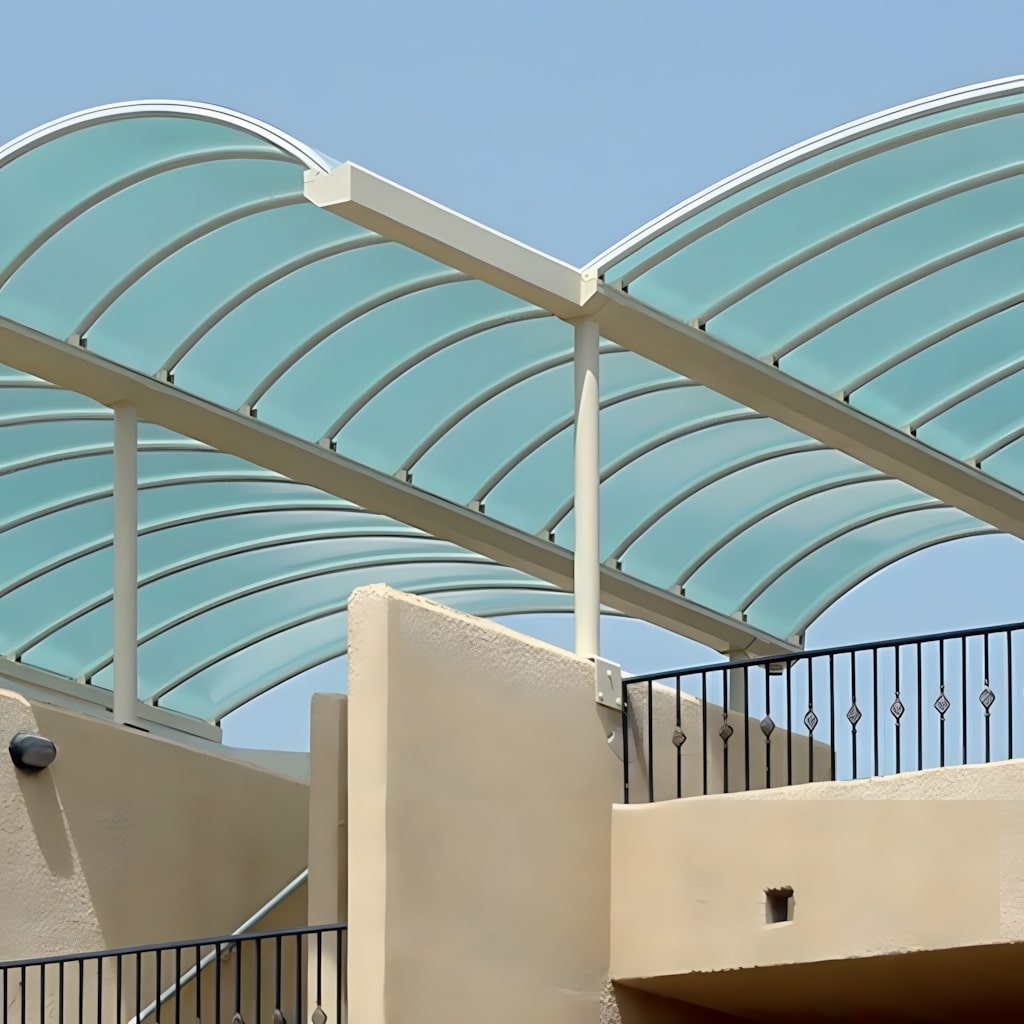

Modern roof with multiwall polycarbonate system

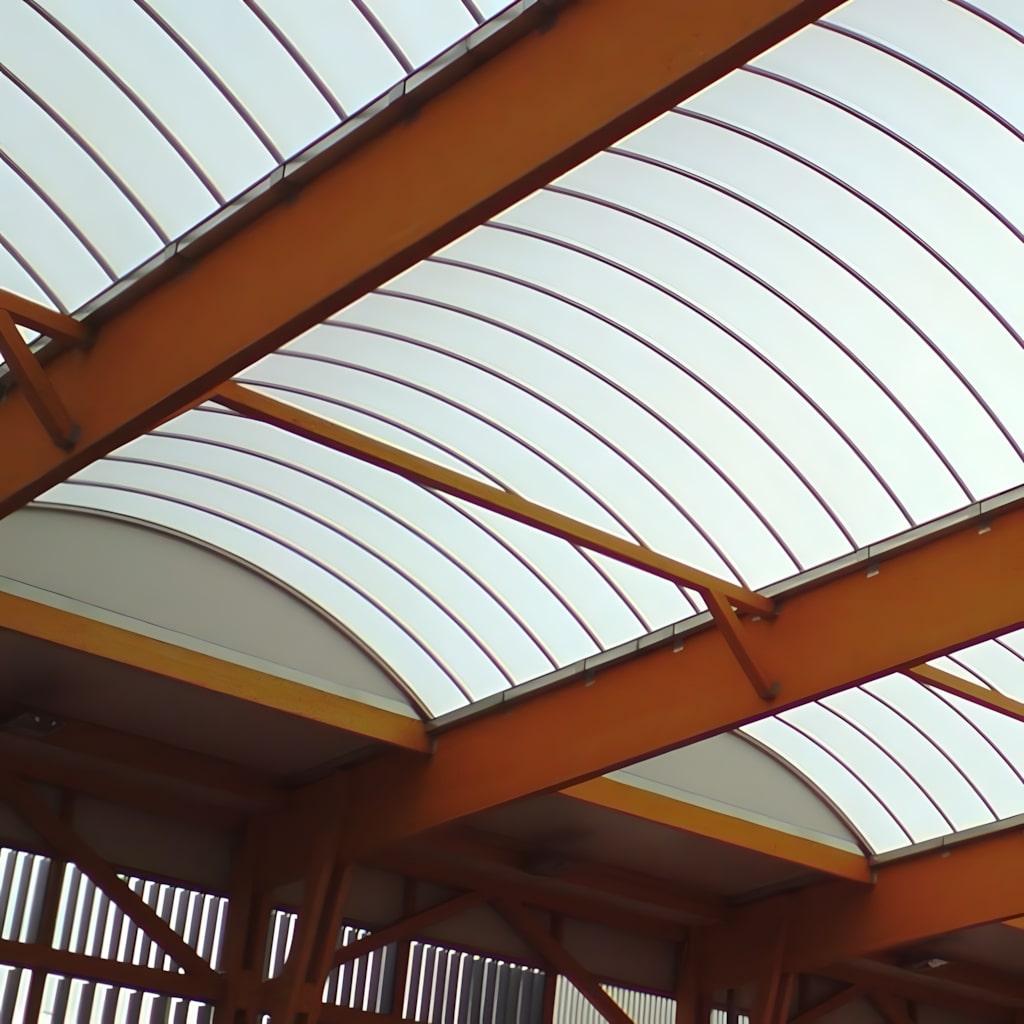

Roof with modular multiwall polycarbonate system +3

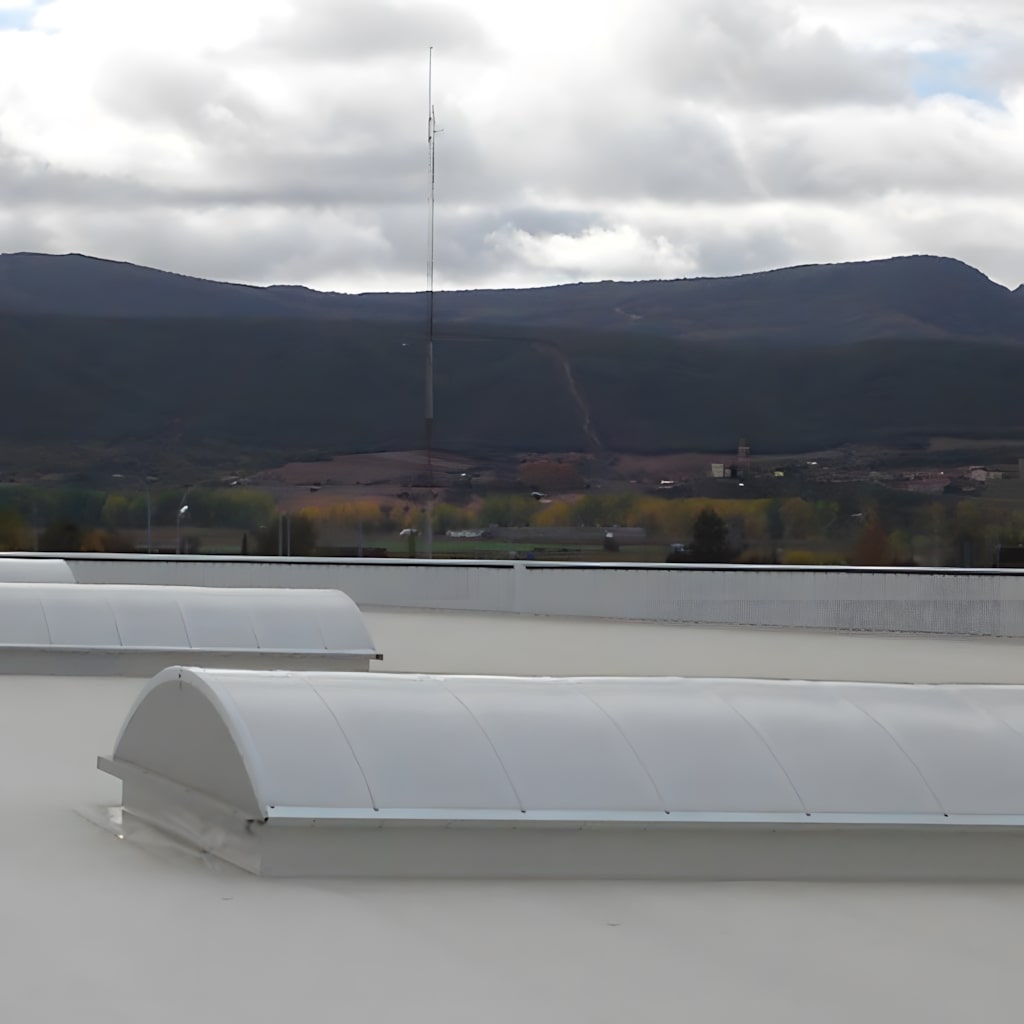

Skylights with modular multiwall polycarbonate system

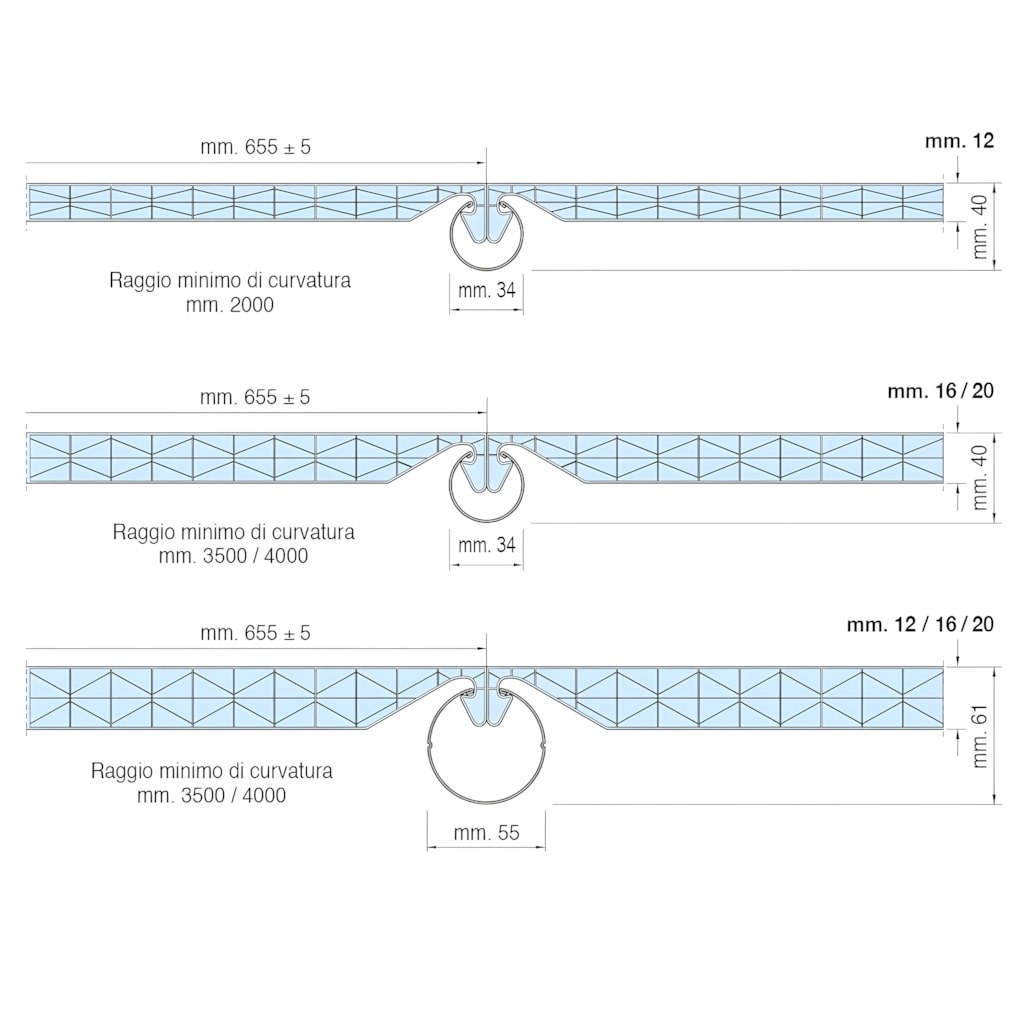

Scheme of self‑supporting modular multiwall polycarbonate system

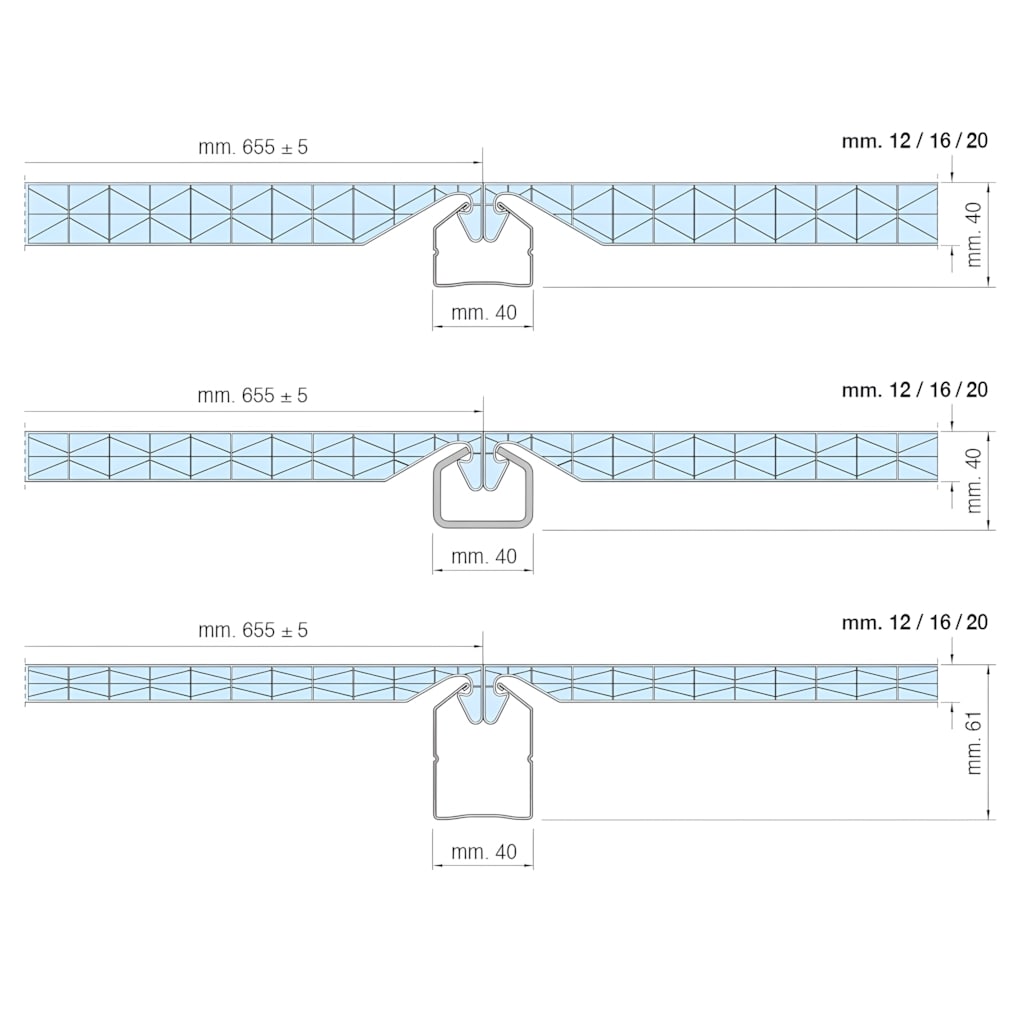

Scheme of self‑supporting modular multiwall polycarbonate system

Engineered for Strong, Lightweight Cladding and Industrial Roofing

The self‑supporting modular multiwall polycarbonate system is a high-performance panel solution developed for vertical cladding, glazing, and flat or curved roofing in industrial and architectural environments. With a reinforced “X” internal structure, the system offers excellent load-bearing capacity, thermal insulation, and mechanical strength, while remaining lightweight and easy to install.

Designed with a unique snap-fit extruded “U” profile, each panel seamlessly connects to galvanized or coated steel channels, creating perfectly planar surfaces with a clean, modern aesthetic. It is available in flat or curved versions (minimum radius: 2000 mm), and includes a full accessory range to meet advanced architectural needs.

The material is UV-protected to prevent yellowing, heat-sealed to block dust, and is compatible with thermal break profiles and openable sections, making it highly adaptable to both industrial and civil projects.

Key Features

  • Reinforced multiwall “X” structure – Delivers high load resistance with minimal weight
  • Self-supporting & snap-fit design – Installs cleanly without exposed fasteners
  • Supports flat and curved layouts – Minimum radius: 2000 mm
  • UV protection – Ensures clarity and material stability over time
  • Optional openable panels & thermal breaks – For ventilation and energy efficiency
  • Compatible with steel channel systems – Precision fit for architectural integration
  • Complete accessory system – Includes profiles, end caps, and sealing components

Ideal Applications

  • Architectural enclosures and ventilated facades
  • Industrial and civil building facades
  • Translucent vertical cladding and curtain walls
  • Flat or curved industrial roofing
  • High-insulation daylighting systems
