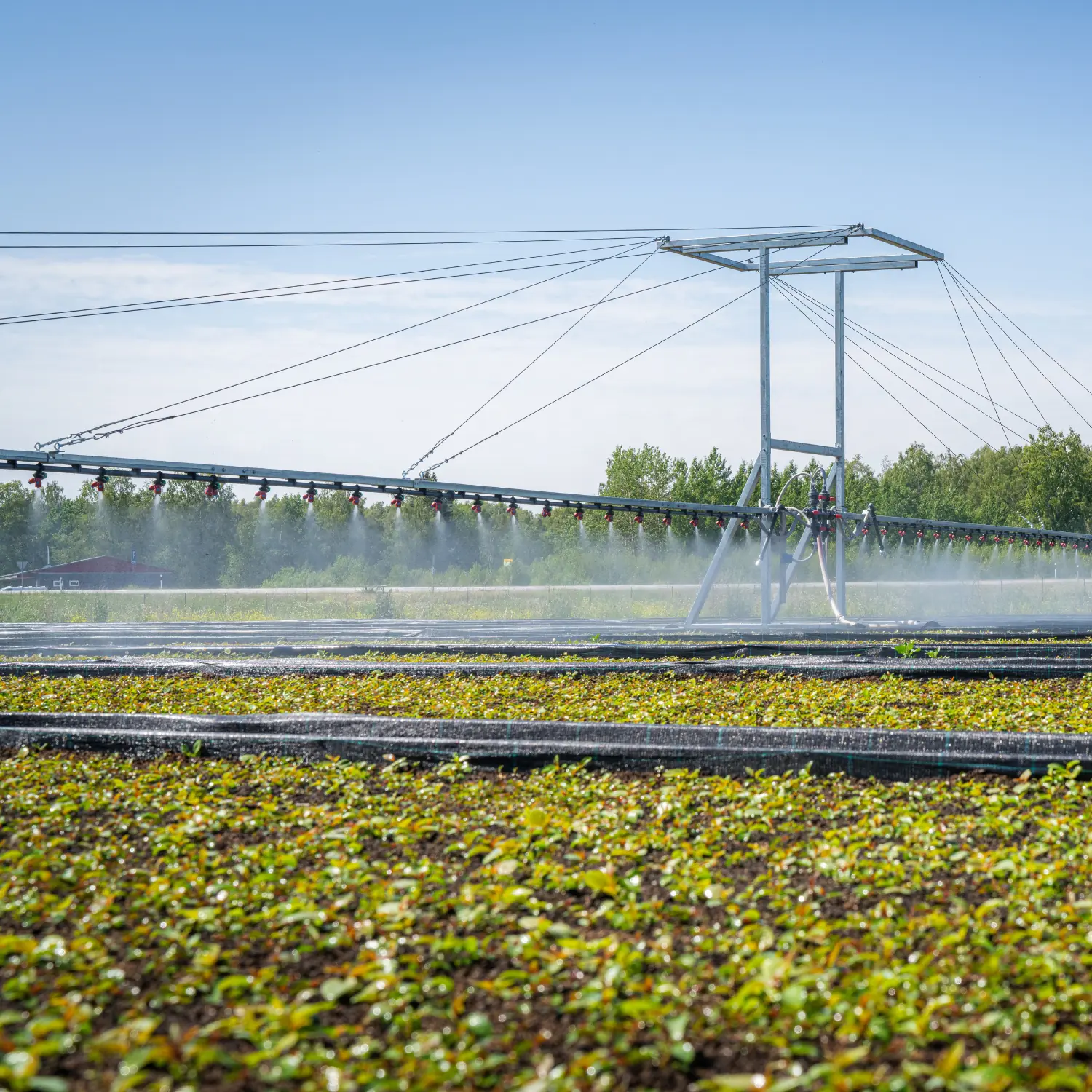

Outdoor Irrigation Boom Systems
The irrigation boom is a precision-engineered solution designed to automate the delivery of water, nutrients, and treatments to large-scale outdoor cultivation areas. These systems provide a controlled-environment approach to open-field nursery production, ensuring uniform moisture levels for forest seedlings, ornamental plants, and high-value vegetable crops.
+1
System Overview

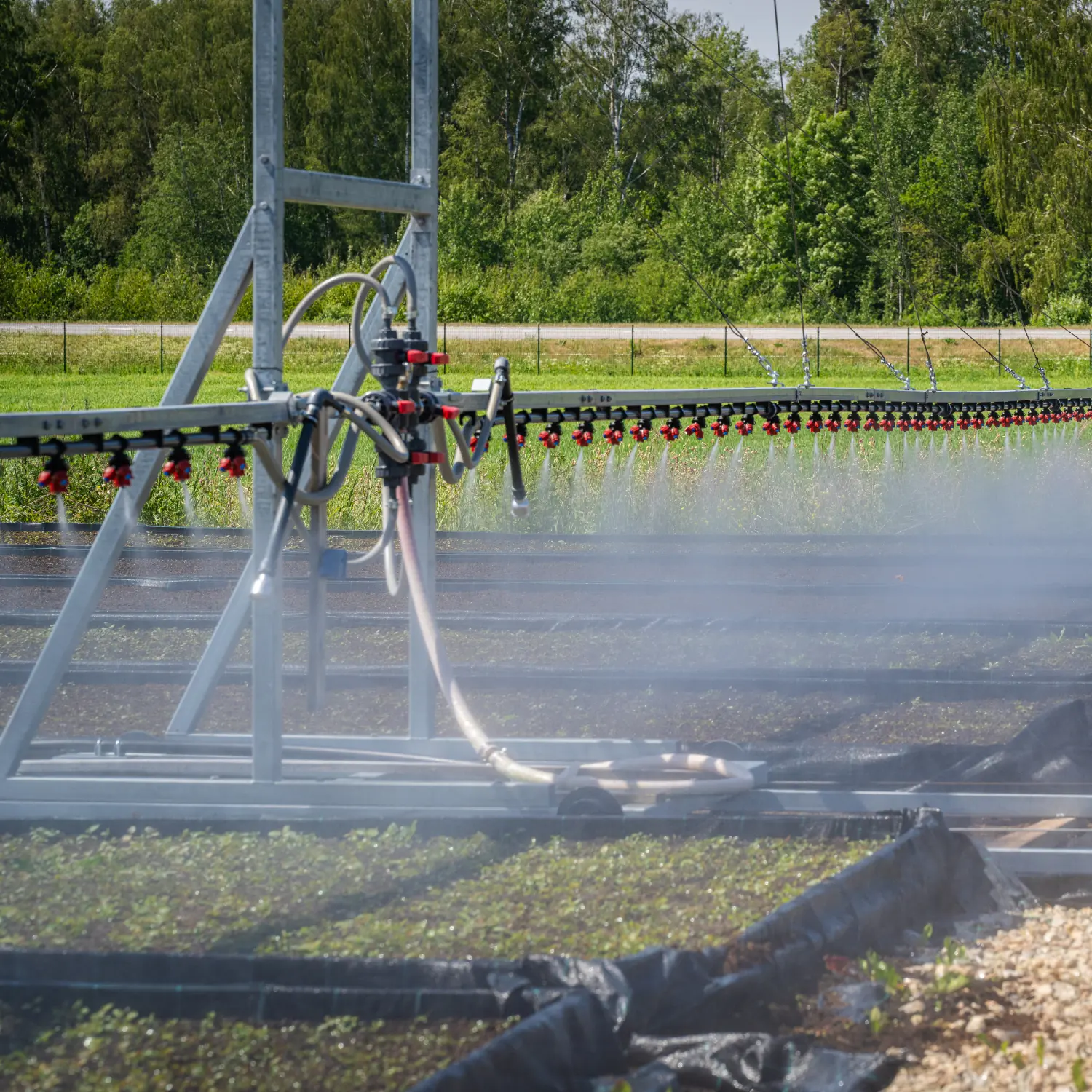

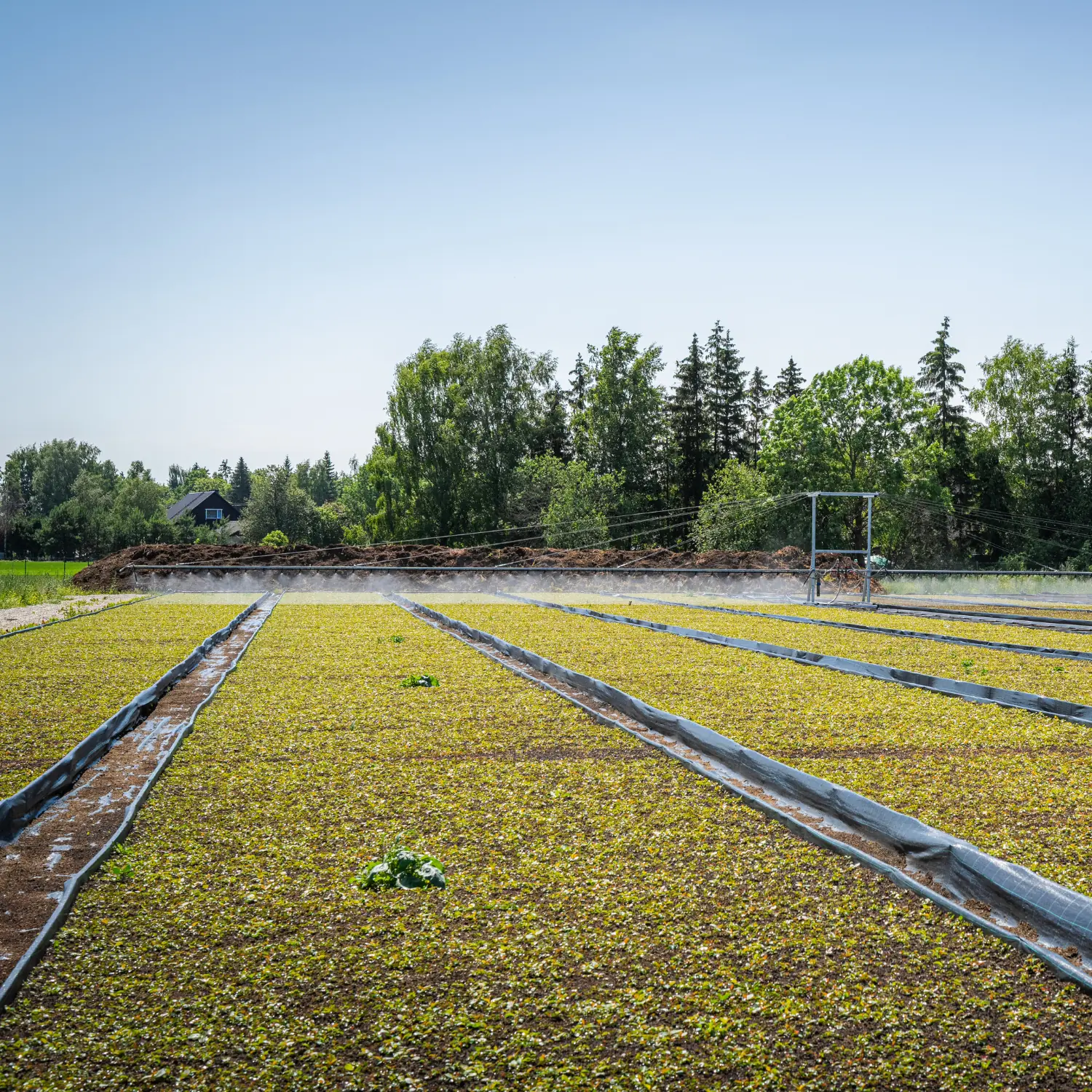

Outdoor irrigation booms serve as a critical infrastructure component for nurseries requiring scalable and repeatable hydration cycles. These systems utilize a dual-rail, hot-dip galvanized structure to provide stable movement across spans of up to 48 meters and lengths reaching 190 meters. By integrating cable-driven transmission and weatherproof drive components, the system maintains consistent operational speeds even in demanding outdoor conditions.
In automated nursery workflows, the irrigation boom functions as a multi-purpose platform for both hydration and fertigation. The inclusion of high-precision nozzles and adjustable height configurations allows for targeted application, reducing resource waste. These systems are designed for integration into broader production schedules via IP66-rated control panels, supporting both manual and fully autonomous multi-zone watering.
Key Benefits for Professional Use
Operational Precision: Enables exact dosing and uniform distribution of water and fertilizers, significantly improving crop consistency compared to manual or stationary irrigation.
Labor Efficiency: Reduces dependency on manual labor through programmable schedules and automated zone-based watering.
Structural Durability: Constructed with hot-dip galvanized steel (Class C3) and UV-resistant components to withstand long-term exposure to outdoor elements.
Resource Optimization: Minimizes runoff and evaporation by directing water precisely to the root zone, supporting sustainable water management.
System Versatility: Facilitates integrated plant protection and fertilization through quick-interface dispenser readiness and multi-row nozzle arrangements.
Typical Applications
Forestry Seedling Production: Maintaining high-density forest plant vitality through consistent moisture management.
Ornamental Plant Nurseries: Managing diverse irrigation needs for potted plants and ground-cover crops across large outdoor plots.
Outdoor Vegetable Propagation: Ensuring uniform growth and hardening off for vegetable starts prior to field transplanting.
Large-Scale Fertigation: Applying liquid fertilizers and plant protection products with a high degree of accuracy and minimal drift.
Technical Specifications and System Data
| Feature | Specification |
|---|---|
| Maximum Dimensions | Width: 48 m |
| Drive System | Cable transmission with 0.37 kW – 1.0 kW motor reducer |
| Operating Pressure | 2.0 – 6.0 BAR |
| Travel Speed | Variable, 0–15 m/min |
| Rail Construction | Double rail profile, hot-dip galvanized (C3) |

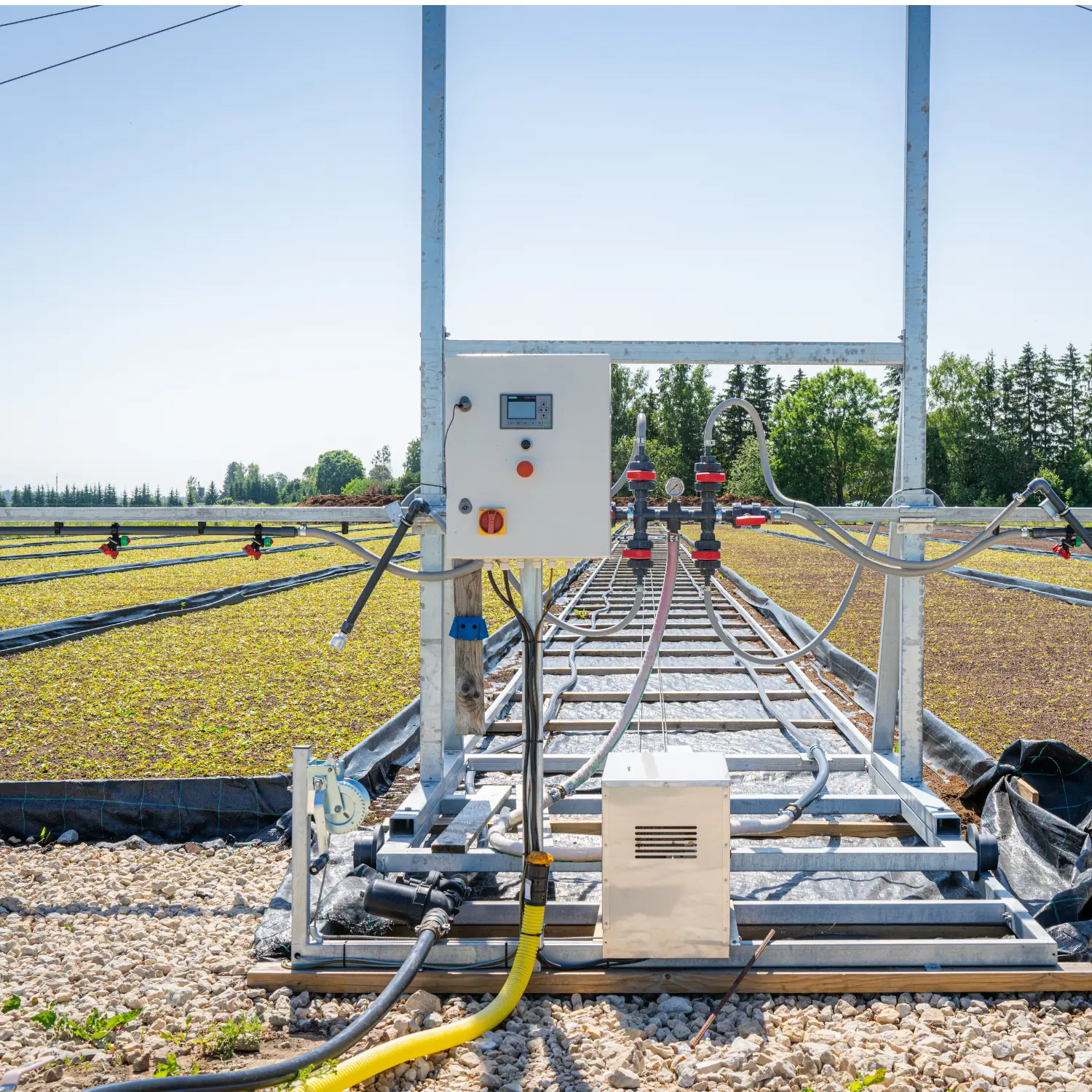

| Control Interface | IP66-rated panel with manual/automatic zone control |
